RADALERT100射线检测仪是一款通用盖革计数器，用于检测α、β、γ和X射线。LCD数字显示读数,每次计数伴有红色LED闪烁和蜂鸣声提示。当辐射达到用户设定水平时有声音报警。RADALERT100符合欧洲CE认证要求

应用领域

· 监测个人辐射暴露量
· 区域或周界监测
· 检测辐射泄漏和污染
· 确保符合管理部门规定
· 检查地球矿物质辐射

功能描述

剂 量 率：0.001-110.0mR/hr或0.01-1100uSV/hr

显　　示：四位数值液晶显示，模式指示

计   数：CPM:0-350,000或CPS:0-3,500总数:1-9,999.00

校　　准：Cs-137(gamma)

灵 敏 度：1000CPM/mR/hr（对于Cs-137）

精　　度：±10%典型值，±15%max

报　　警：内置,当辐射水平达到用户设定值时发出声音报警，用户可调报警水平达50mR/Hr和160.000CPM

计 数 灯：每个计数时LED闪烁

声　　音：每个计数时发出BP机似的声音(可以设置成静音)

输　　出：两用微型插孔发送计数到计算机、数据记录器、教学数据收集系统及其它CMOS兼容设备。超微型插孔提供输出到外接耳机、放大器或磁带在录音机

电　　源：9V碱性电池,一般背景水平下可用2160小时;1mR/Hr静音时可用625小时

尺寸重量：150×80×30(mm)，225g(含电池)

Radalert 100

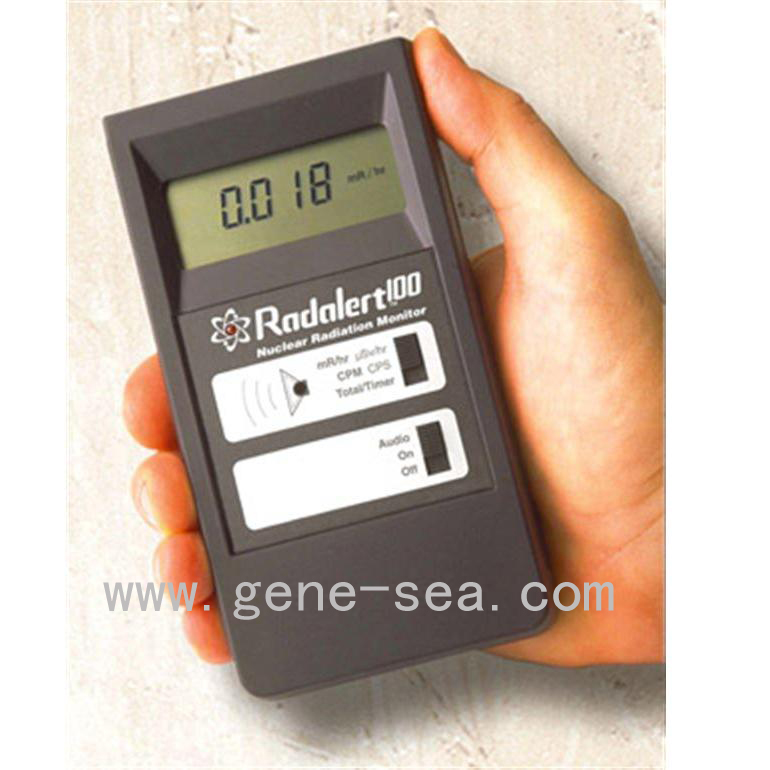

The Radalert® 100 is a general purpose geiger counter that measures alpha, beta, gamma, and x-radiation. Exciting new features of the Radalert 100 (which is the upgraded version of the popular Radalert 50), include a three-second update and a utility menu that allows you to change the default settings for several operating parameters. Its digital liquid crystal display (LCD) shows the current radiation level in your choice of milliroentgens per hour from .001 to 110 or counts per minute (cpm) from 0 to 350,000. When SI units are selected, the LCD shows readings in microsieverts per hour from .01 to 1100 or counts per second (cps) from 0 to 3,500. This instrument also offers an accumulated total and timer function, up to 9,999,000 counts and 40 hours. A red LED blinks and a beeper chirps with each count (the chirp can be muted). An audible alert sounds when the radiation reaches a user-adjustable level. The Radalert® 100 meets CE certification requirements for Europe.

§            Monitor personal radiation exposure

§            Monitor an area or perimeter

§            Detect radiation leaks and contamination

§            Ensure regulatory compliance

§            Monitor changes in background radiation

§            Demonstrate principles of nuclear physics

§            Check for radioactive minerals in the earth

Specifications:

Sensor:
• Halogen-quenched Geiger-Meuller detector (LND712)
• Mica end window density is 1.5-2.0 mg/cm²
• Side wall is 0.012″ #446 stainless steel
• Detects Alpha, Beta, Gamma, and X-radiation

Display: 4-digit liquid crystal display with mode indicators

Calibration: Cesium 137 (gamma)

Sensitivity: 1000 cpm/mR/hr referenced to Cs-137

Accuracy: ±10% typical; ±15% max. (mR/hr and µSv/hr modes)

Alert: User-adjustable alert level to 50 mR/hr and 160,000 CPM

Count light: Red LED flashes with each count

Audio: Beeper chirps for each count (can be muted)

Ports:
• Output: Stereo 3.5 mm jack sends counts to computers, data loggers, other CMOS-compatible devices and headphones
• Input: Mono 2.5 mm jack provides electronic calibration input

Power: One 9-volt alkaline battery; average battery life is 2160 hours at normal background, 625 hours at 1 mR/hr with beeper off

Size: 150 x 80 x 30 mm (5.9″ x 3.2″ x 1.2″)

Weight: 225 grams (8 oz) including battery

Options: Computer cable and software (IBM PC compatible)

CE Certified
