该检测仪用于测量α、β、γ及X射线的辐射。它的数字液晶显示屏能够显示当前的辐射水平范围在0.001到110毫伦伏/小时或者是0到350000cpm(每分钟计数)。当 SI 单位被选择的时候,液晶显示屏显示的读数从0.01到100微希伏/小时或者是0到3500cps(每秒计数)。这个仪器同时也提供一种非常精确的计数和定时功能。计数范围可以从0到9999000,而定时最大可定40小时。每计数一次,红色的发光二级管都会闪亮并伴随着发声仪发声(声音大小可调)。当辐射水平达到用户所设定的水平的时候,可听得见的报警器就会响。
适用场所:
● 监测人身的放射性暴露量 ● 监测一个地区的边界周长
● 探测放射性泄露和污染 ● 确保可调整
● 监测不引人注意的位置的辐射的变化
● 核物理学的论证原则 ● 查找地球上的放射性物质
说明
传感器:
● 卤素-淬火的盖革-弥勒监测仪 ● 端口密度1.5-2.0mg/cm2
● 边网是0.012‘‘ #446不锈钢 ● 用于测量α、β、γ及X射线的辐射
显示:带有模式指示器的数字液晶显示屏
测量范围:
mR/hr(毫伦/小时): 0.001-110 CPM(每分钟计数):0-350000
Usv/hr(微希伏/小时):0.01-1100 CPS(每秒钟计数):0-3500
计数范围:0-9999000 定时范围:0-40小时
校准:铯137(β射线)
灵敏度:1000cpm/mR/hr参考铯-137
精度:一般在+/-10%。最大+/-15%(mR/hr&mSv/hr 模式)
警报:用户设定的警报水平在50mR/hr&160000CPM
计数灯:每计一个数,红色发光二级管就闪一下。
声音:每计一个数,发声仪发声(声音大小可调)。
端口
● 输出端:用多元的3.5 毫米插座将计数送到计算机、数据采集线、其他的互补型金属氧化半导体-可并立的装置和耳机。
● 输入端:用单一的2.5 毫米插座来对电子的口径的输入进行测定。
电源:9伏特的碱性电池,在正常工作环境下,电池的平均寿命为2160小时,当关闭发声仪时,以1毫伦/小时的速率可用625小时。
体积:150×80×30mm。(5.9"×3.2"×1.2")
重量:225g(包括电池在内)
选项: 计算机电缆和软件(IBM个人计算机兼容)
鉴定:CE

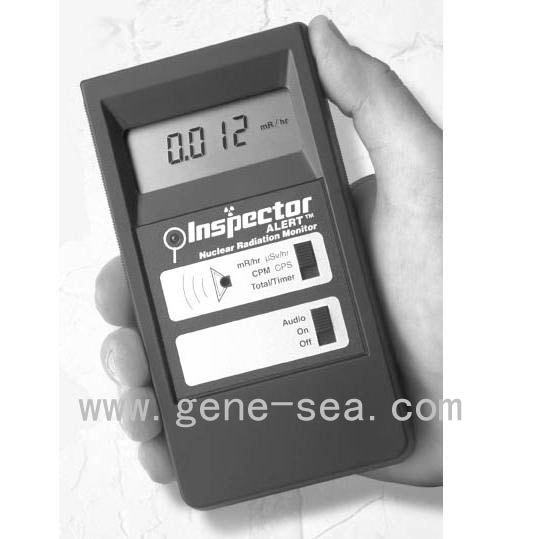

Inspector Alert
Inspector Alert Handheld Surface Contamination Meter
How to Use the Inspector Alert
The Inspector Alert measures alpha, beta, gamma and x-radiation using a 2-inch “pancake” GM detector with high sensitivity to common beta and alpha sources.
The easy-to-read digital display shows readings in your choice of mR/hr, CPM, CPS, or µSv/hr. The Total/Timer feature allows timed readings from one minute to 24 hours for precise measurement of low level contamination. An audible alert sounds when the radiation reaches a user-adjustable level.
§ Quickly alerts first responders to the presence of harmful levels of nuclear radiation
§ Improves safety in the laboratory and in the field
§ Automatically compensates for GM tube dead time
§ Will not jam in high radiation fields
§ Meets CE certification requirements for Europe
Detector:Halogen-quenched Geiger-Mueller tube. Effective diameter 1.75″ (45 mm). Mica window density 1.5-2.0 mg/cm².
Display:4-digit liquid crystal display with mode indicators
Operating Range:
|
mR/hr: .001 to 100.0
CPM: 0 to 350,000
Total: 1 to 9,999,000 counts
µSv/hr: .01 to 1,000
CPS: 0 to 5,000
|
Gamma Sensitivity:3500 CPM/mR/hr referenced to Cs-137
Smallest detectable level for I-125 is .02 µCi at contact
Efficiency: For 4 pi geometry at contact
|
Beta
C-14 (49 keV avg. 156 keV max.): 5.3%
Bi-210 (390 keV avg. 1.2 MeV max.): 32%
Sr-90 (546 keV and 2.3 MeV): 38%
P-32 (693 keV avg. 1.7 MeV max.): 33%
Alpha
Am-241 (5.5 MeV): 18%
|
Averaging Periods:Display updates every 3 seconds, showing the average for the past 30-second time period at normal levels. The averaging period decreases as the radiation level increases. User can select a fast 3-second averaging period.
Timer:Can set 1-10 minute sampling periods in one-minute increments, 10-50 minute sampling periods in 10-minute increments, and 1-24 hour sampling periods in 1-hour increments
Alert:Beeper sounds the alert
User-adjustable alert level is set using three buttons
Accuracy:± 15% up to 50 mR/hr; ± 20% up to 100 mR/hr
Anti-Saturation:Readout holds at full scale in fields up to 100 times the maximum reading
Temperature Range:-20º to +50º C , -4º to +122º F
Power:One 9-volt alkaline battery; battery life is average 2160 hours at normal background, average 625 hours at 1 mR/hr with beeper off
Size:150 x 80 x 30 mm (5.9″ x 3.2″ x 1.2″)
Weight:323 grams (11.4 oz) including battery
I/O Ports:Dual miniature jack for CMOS or TTL devices, sending counts to computer or data logger. Submini jack for electronic calibration.
Count Light:Red LED flashes with each radiation event
Audio:Beeper beeps with each radiation event; can be muted
Options: Wipe Test Plate
