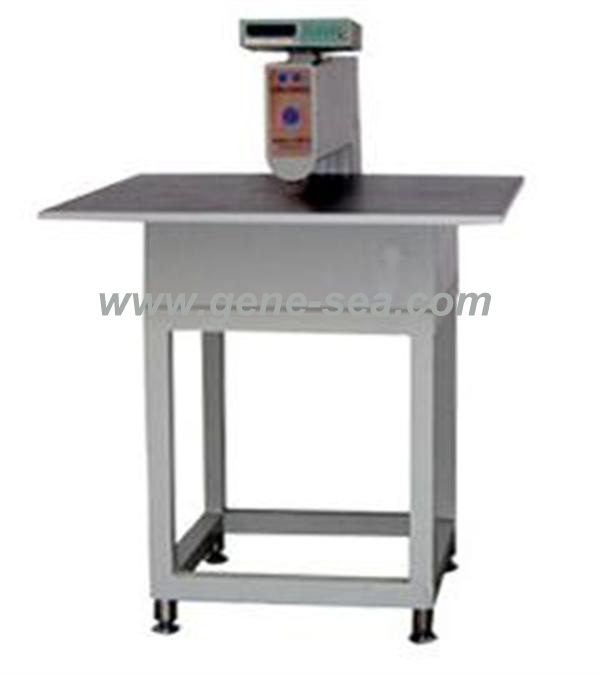

OM-25A 长臂板厚测量仪
产品说明：
OM-25A长臂板厚测量仪用于精密测量覆铜层压板、印制线路板和其它板材的厚度。数字式显示读数为小数点以后三位，为了保证精确的读数，该机采用脚开关操作，以便操作者的双手可拿住被测材料进快速和安全的测试。
The OM-25A Over-arm Micrometer is used for precise thickness measurements of laminates, printed circuit boards and other platens. The digital display provides readout to three decimal places. The machine is foot switch operated leaving both hands free to handle materials safely and rapidly to sure accurate readings.
OM-25A长臂板厚测量仪技术规范
● 用于覆铜层压板、印制线路板和其他板材的厚度测量
● 测量范围（mm）：0-25
● 分辨力（mm）：0.001
● 测量行程（mm）：25
● 精度（mm）：0.004
● 喉深（mm）：510
● 台面尺寸（W×D）（mm）：900×850
● 供电：220V，50Hz，交流，单相
● 供气：0.6Mpa
● 机台外形尺寸（W×D×H）（mm）：900×850×650
● 机重（kg）：45kg
OM-25A Over-arm Micrometer Specification
● Measures Laminates, printed circuit boards and other platens thickness.
● Measurement Range: 0-25mm
● Resolution（mm）：0.001
● Stroke: 25mm
● Accuracy: 0.004mm
● Throat: 510mm
● Table Size (W×D): 900×850mm
● Power supply: 220V, 50Hz, Single phase
● Air Supply: 0.60 Mpa
● Machine Size (W×D×H): 900×850×650mm
● Machine Weight: 45kg
