• Alarm Type High/Low, Low Battery, Calibration Due, Lost Communication
• Ambient Operating RH Conditions 0-95% RH non-condensing
• Ambient Operating Temperature Conditions -22 to 122F (-30 to 50C)
• Antenna Type Internal
• Approvals RoHS, FCC Part 15 Compliance, CE
• Battery Backup 4 AA Batteries
• Battery Life (Avg) 6 Months (at 2 Minute Sample Rate in Moderate Conditions)
• Cable Details USB - Male Series A plug to 5 pin Male Series B mini plug.
• Cable Length 6ft
• Calibration Options N100 , N300, N400, & N520
• Channels CH1: Temperature, CH2: Humidity
• Data Capacity 32,000 (16,000 per channel)
• Digital Display Yes
• Dimensions 1.7 x 4.25 x 4.25in
• Download Type Wireless
• Enclosure Black; ABS Plastic Clam Shell
• Humidity Accuracy +/-2% RH from 0 to 60%; +/-3% RH from 60 to 95%
• Humidity Range 0-95% RH non-condensing
• Humidity Sensor Type Digital RH Sensor
• IP Rating 21
• Included Accessories USB Cable, AC Adapter, 4 AA Batteries, Quick Start Guide
• Mounting Options Free Standing or Wall Mount (With Keyhole)
• Note on Alarm Type All alarm conditions will generate a pop-up notification in the Dickson WiZARD Software. Text/Email notification available with use of WiZARD SECURE Software.

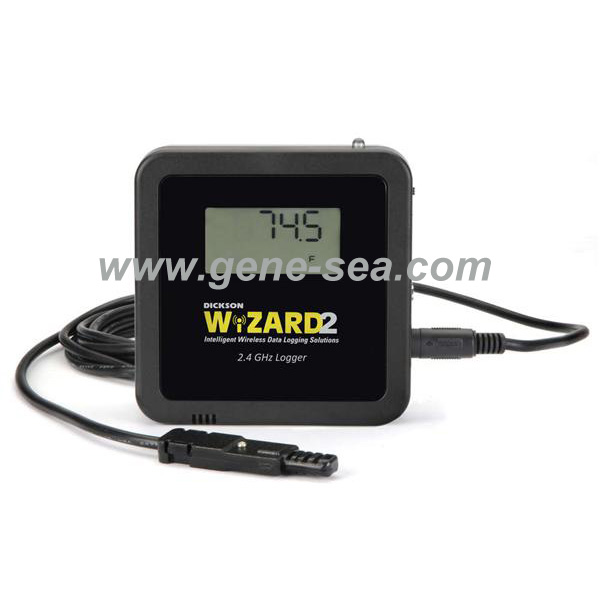

• Notes The WH245 Logger reads temperature and humidity and sends data back to the Receiver at regular intervals.
• Output Signal 4800 Baud Serial Data
• PC Requirements Minimum of 1 GB RAM; Windows XP (with service pack 3), Vista and Windows 7; 2 available USB ports
• Power Cord 6 ft
• Power Source 120 to 240 VAC, 12 VDC (INTL fittings available)
• Power Source Input AC 100-240 0.5V 60/50 Hz
• Power Source Output DC 9V, 1A
• Power Status Indicator Red/Green/Blue (RGB) LED
• Radio Frequency 2.4 GHz
• Remote Probe Dimensions Houses thermistor and RH sensor in polycarbonate plastic; 1.5" x 0.5" (1.25cm x 4.5cm)
• Remote Sensor Length 10 ft
• Response Time 30 Seconds to 63% of Full Scale
• Sample Interval User Selectable (from 10 seconds to 1 hour in 10 second intervals)
• Signal Strength Less than 10 mW
• Storage Conditions -22 to 158F (-30 to 70C)
• Storage Conditions RH 0-95% RH non-condensing
• Temperature Accuracy +/-0.8F from 20 to 122F 1.8F Remaining (+/-0.44C from -7 to 85C 1C Remaining)
• Temperature Range  -20 to 185F (-28 to 85C)
• Temperature Sensor Type Digital Temperature Sensor
• Unit Weight 3 lbs
• Units/Pkg 1
• Wireless Range  300 ft

• Ambient Operating RH Conditions 0-95% RH non-condensing
• Ambient Operating Temperature Conditions -22 to 122F (-30 to 50C)
• Antenna Type Internal
• Approvals RoHS, FCC Part 15 Compliance, CE
• Battery Backup 4 AA Batteries
• Battery Life (Avg) 6 Months
• Cable Details USB - Male Series A plug to 5 pin Male Series B mini plug.
• Cable Length 6ft
• Dimensions 1.7 x 4.25 x 4.25in
• Download Type Receiver and WiZARD Software
• Enclosure Black; ABS Plastic Clam Shell
• IP Rating 21
• Included Accessories WiZARD Software CD, USB Cable, AC Adapter, 4 AA Batteries, Quick Start Guide, Manual (on the CD)
• Mounting Options Free Standing or Wall Mount (With Keyhole)
• Note for PC Requirements Use of a dedicated PC is recommended for use with this application.
• Note for Wireless Range Wireless range is 300Ft Line of Sight. Physical barriers, wireless equipment and electrical equipment may significantly limit wireless range. We recommend using repeaters to ensure continuous communication.

• Notes The WR220 Receiver and WiZARD2 Software can receive logged data from up to 60 Loggers.
• Output Signal 4800 Baud Serial Data
• PC Requirements Minimum of 1 GB RAM; Windows XP (with service pack 3), Vista and Windows 7; 2 available USB ports
• Power Cord 6 ft
• Power Source 120 to 240 VAC, 12 VDC (INTL fittings available)
• Power Source Input AC 100-240 0.5V 60/50 Hz
• Power Source Output DC 9V, 1A
• Power Status Indicator Red/Green/Blue (RGB) LED
• Radio Frequency 2.4 GHz
• Signal Strength Less than 10 mW
• Storage Conditions -22 to 158F (-30 to 70C)
• Storage Conditions RH 0-95% RH non-condensing
• Unit Weight 3 lbs
• Units/Pkg 1
• Wireless Range 300 ft

WR423   Wireless Receiver and Software with Email and Text Alerts
