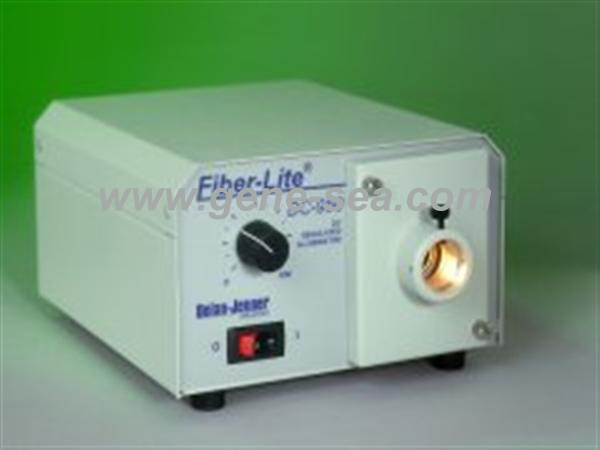

DC950H 150Watt Machine Vision Fiber Optic Illuminator
Dolan-Jenner DC950H 150W光纤照明
The Dolan-Jener Fiber-Lite DC950H now offers up to 2X the output of the current DC950, even greater reliability and is now RoHS compliant!
The DC950H is a cost effective 150 watt quartz halogen light source designed specifically for machine vision lighting. The DC950H features a DC-regulated output, which is stabilized to +/- 0.5 %. Precise regulation is essential for machine vision applications, where variation in input line voltages would otherwise effect the image capture.
The DC950H maintains a compact size, while offering features such as a linear remote intensity control option, Universal AC Input Power, and color filtering capability. The nosepiece is compatible with all of our standard fiber optic configurations.
Features
RoHS Compliant
Light output regulation of
+/- 0.5% or better
0-5 VDC linear remote control
interface, with optional digital
interfaces
Solid state intensity control
(0-100%)
Universal AC Input Power
UL/c-UL, FCC and CE
Color filtering options
Optional Mounting Brackets
Easy lamp change
Cool housing and nosepiece
temperature
Small foot print
2 Yr. Warranty
|
Specifications
|
|
|
Input:
|
100 - 240 VAC 50/60 Hz Universal AC Input
|
|
Lamp:
|
150 Watt, 21 V, EKE quartz halogen
|
|
Color Temperature:
|
3200° Kelvin at max. intensity
|
|
Lamp Life:
|
200 hrs. at full intensity/ up to 10,000 hrs. at lower levels
|
|
Fiber Optic Interface:
|
DC950H - 1.0 in. dia. / DC950HB - 0.59 in. dia.
|
|
Light Output Regulation:
|
+/- 0.5% or better
|
|
Output Ripple:
|
0.4% or better
|
|
Intensity Control:
|
solid state 0-100%
|
|
Remote Intensity Control:
|
0-5 VDC analog, optional 8-bit digital or RS232
|
|
Dimensions:
|
7.25" x 9.50" x 4.69"
|
|
Weight:
|
11.5 lbs.
|
|
Approvals:
|
UL/c-UL, FCC, CE, CB, RoHS
|
