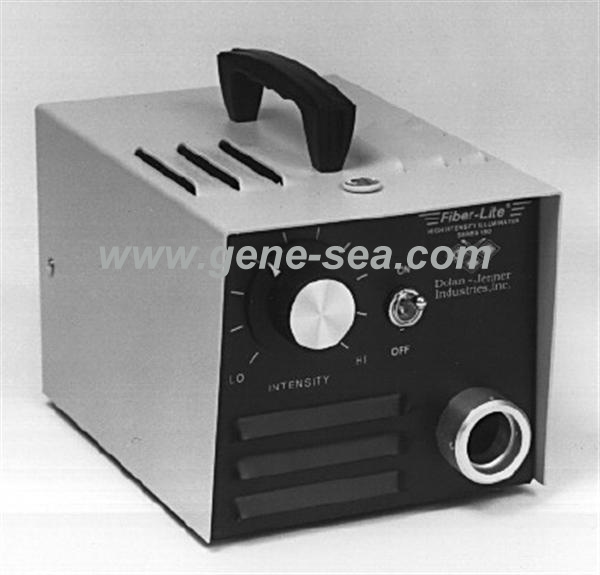

Dolan Jenner Fiber-Lite 180光纤照明
Fiber-Lite 180 Illuminator
Classic 150 Watt Illuminator
Durable and quiet with the lowest possible vibration levels
Compatible with all Fiber-Light standard and custom fiber optic light guides
产品规格：
灯泡：EKE,21V,150W
(EJV,21V,150W,可选)
灯泡寿命：200小时(当全亮时40小时)
EKE色温，3250 ºK（EJV,3350 ºK,可选）
电压：115V,50/60HZ
220/230V,50/60HZ
亮度控制：Rehoeostat, 50 - 100%
保险丝：2.5A 250V 3AB缓熔(115V)
1.25A 250V 3AG缓熔(230V)
燥音等级：N/A
尺寸：5.87" x 6.5" x 9"
重量：9磅
光纤输入直径：1.00"
Fiber-Lite 180 Illuminator
181-Dual Gooseneck System
- Durable and quiet with the lowest possible vibration levels
- Compatible with all Fiber-Light standard and custom fiber optic light guides
|
|
Specifications
|
|
Lamp:
|
EKE, 21 Volt, 150 Watt
(EJV, 21 Volt, 150 Watt, optional)
|
|
Lamp Life:
|
200 Hours at full intensity (40 Hours at full intensity)
|
|
Color Temperature
|
EKE, 3250ºK (EJV, 3350ºK, optional)
|
|
Voltage:
|
115 VAC, 50/60 Hz
220/230 VAC, 50/60 Hz
|
|
Intensity Control:
|
Rehoeostat, 50 - 100%
|
|
Fuse :
|
2.5A 250V 3AB slow blow (115 VAC)
1.25A 250V 3AG slow blow (230 VAC)
|
|
Noise Level:
|
N/A
|
|
Dimensions:
|
5.87" x 6.5" x 9"
|
|
Weight:
|
9.00 Pounds
|
|
Fiber Input Diameter
|
1.00"
|
|
Adapters
|
A-type adapter series
|
|
Fiber-Lite 180 Illuminator
360-1 RL System
- Durable and quiet with the lowest possible vibration levels
- Compatible with all Fiber-Light stand and custom fiber optic light guides
|
|
Specifications
|
|
Lamp:
|
EKE, 21 Volt, 150 Watt
(EJV, 21 Volt, 150 Watt, optional)
|
|
Lamp Life:
|
200 Hours at full intensity (40 Hours at full intensity)
|
|
Color Temperature
|
EKE, 3250ºK (EJV, 3350ºK, optional)
|
|
Voltage:
|
115 VAC, 50/60 Hz
220/230 VAC, 50/60 Hz
|
|
Intensity Control:
|
Rehoeostat, 50 - 100%
|
|
Fuse :
|
2.5A 250V 3AB slow blow (115 VAC)
1.25A 250V 3AG slow blow (230 VAC)
|
|
Noise Level:
|
N/A
|
|
Dimensions:
|
5.87" x 6.5" x 9"
|
|
Weight:
|
9.00 Pounds
|
|
Fiber Input Diameter
|
1.00"
|
|
Adapters
|
A-type adapter series
|
|
Fiber-Lite 180 Illuminator
Classic 150 Watt Illuminator
- Durable and quiet with the lowest possible vibration levels
- Compatible with all Fiber-Light standard and custom fiber optic light guides
|
|
Specifications
|
|
Lamp:
|
EKE, 21 Volt, 150 Watt
(EJV, 21 Volt, 150 Watt, optional)
|
|
Lamp Life:
|
200 Hours (40 Hours at full intensity)
|
|
Color Temperature
|
EKE, 3250ºK (EJV, 3350ºK, optional)
|
|
Voltage:
|
115 VAC, 50/60 Hz
220/230 VAC, 50/60 Hz
|
|
Intensity Control:
|
Rehoeostat, 50 - 100%
|
|
Fuse :
|
2.5A 250V 3AB slow blow (115 VAC)
1.25A 250V 3AG slow blow (230 VAC)
|
|
Noise Level:
|
N/A
|
|
Dimensions:
|
5.87" x 6.5" x 9"
|
|
Weight:
|
9.00 Pounds
|
|
Fiber Input Diameter
|
1.00"
|
|
|
Light Guides for MI-150 Series, Model 180, and Model 3100 Illuminators
|
|
|
|
|
|
EEG3736/EEG3736M
|
|
|
|
P/N
|
Length
(A)
|
Input, dia (B)
|
Adapter
|
Use w/Model
|
|
EEG3736
|
36 (914)
|
0.436 (11.07)
|
SX-7
|
180
|
|
EEG3736M
|
36 (914)
|
0.588 (14.9)
|
N/A
|
MI-150
|
|
|
|
EEG2823/EEG2823M
|
|
P/N
|
Length
(A)
|
Input, dia (B)
|
Adapter
|
Use w/Model
|
|
EEG2823
|
23 (584.2)
|
0.625 (15.9)
|
SX-11
|
180
|
|
EEG2823M
|
23 (584.2)
|
0.588 (14.9)
|
N/A
|
MI-150
|
|
|
|
BGG1823/BGG1823M
|
|
|
|
P/N
|
Length
(A)
|
Input, dia (b)
|
Adapter
|
Use w/Model
|
|
BGG1823
|
23 (584.2)
|
0.562 (14.3)
|
SX-10
|
180/3100
|
|
BGG1823M
|
23 (584.2)
|
0.588 (14.9)
|
N/A
|
MI-150
|
|
|
|
|
BG2820/BG2820M
|
|
|
|
P/N
|
Length
(A)
|
Input, dia (b)
|
Adapter
|
Use w/Model
|
|
BG2820
|
20 (508)
|
0.624 (15.9)
|
SX-11
|
180
|
|
BG2820M
|
20 (508)
|
0.588 (14.9)
|
N/A
|
MI-150
|
|
|
|
|
EEG436/EEG436M
|
|
|
|
P/N
|
Length
(A)
|
Input, dia (b)
|
Adapter
|
Use w/Model
|
|
EEG436
|
36 (914)
|
0.312 (10.7)
|
SX-6
|
180/3100
|
|
EEG436M
|
36 (914)
|
0.588 (14.9)
|
N/A
|
MI-150
|
|
|
|
|
|
